ADELSYSTEM DIN RAIL DC-UPS: YOUR BLACKOUT DEFENCE

Loss of power can seriously compromise building security, making it easier for thieves and criminals to strike. When the power goes out or fluctuates, electronic locks might fail, alarms could stop working, and cameras may go offline.

Even if it lasts a few seconds, properties are left vulnerable and open to intruders.

This is why security systems, whether they are alarms or CCTV cameras, need to work all year round - 24/7. Any downtime can create risks for both people and the property.

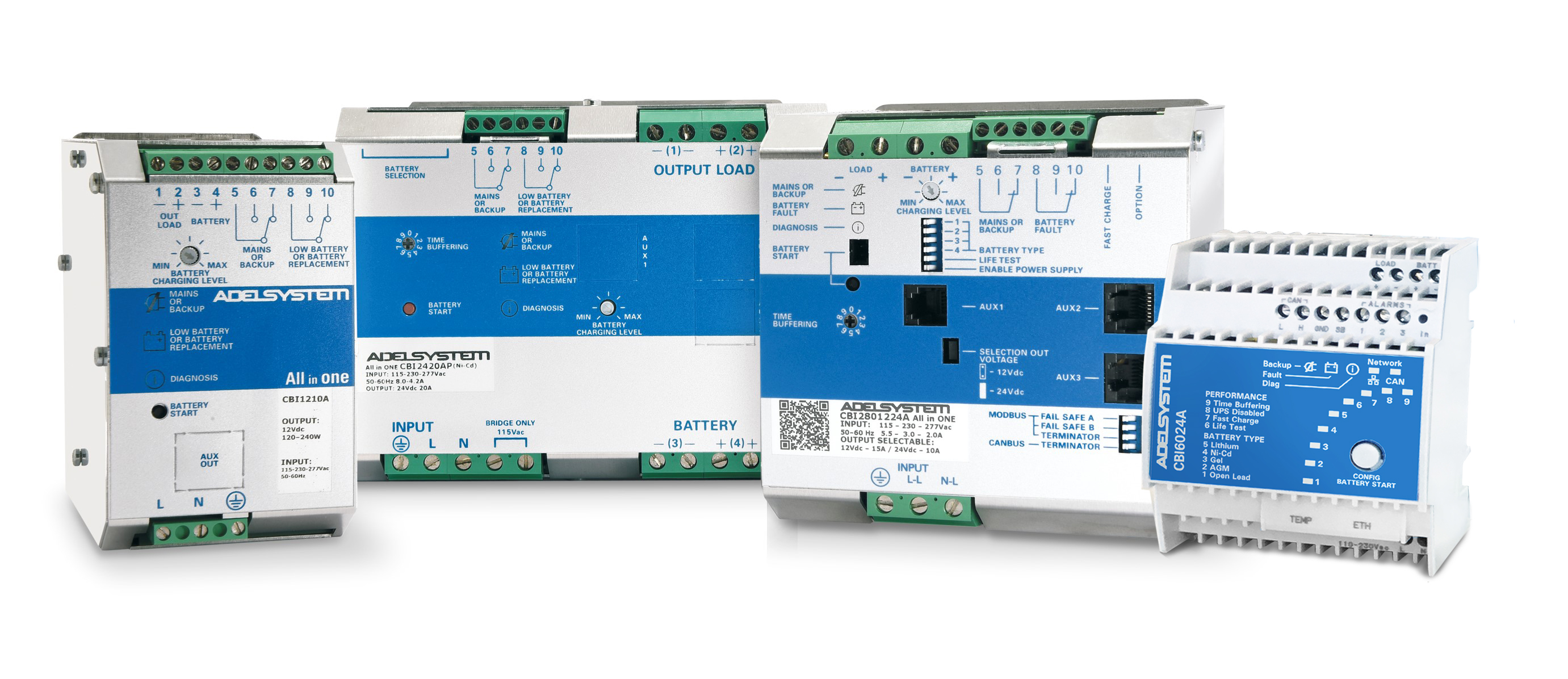

Having reliable backup power systems to kick in immediately when the main power supply is interrupted is essential for maintaining maximum security. ADELsystems offers a range of Din Rail-mount DC-UPS solutions, designed to provide uninterrupted power to connected loads even during electrical outages.

Key Features

• Compact Size: These single-module units are perfect for small spaces and compact panels

• Versatile “CBI Line”:

  • Comes with an integrated power supply

  • Connects directly to mains power (input voltage of 90305VAC)

  • Available in 12V, 24V and 48V output options

• Dual Outputs: Each unit features two separate outputs, one for the load output and another for the battery pack.

• Instant Power Switch: Thanks to the advanced internal software, the ADELSystem DC-UPS ensures that in an event of an interruption where the main electricity supply fails, the connected devices can power on immediately. This system switches to battery power, ensuring that a supply is continuous and seamlessly available.

• High-quality: Designed and manufactured in Italy, it comes with a 3-year warranty for peace of mind

Advanced Functions

Using the Life Test function, the device can perform regular battery diagnostics, allowing users to optimise the charging process by selecting the most suitable charging curve for their specific battery. By doing so, the system maximises efficiency, extends battery lifespan, and enhances overall performance. ADELSystem DC UPS units offer specific battery charging profiles including Lead Acid, AGM, NiCD, NiMh, Li-Ion and LiFePO4.

These devices can detect various battery issues that may develop over time such as short circuits, polarity reversal, disconnected batteries, and battery sulfation. This diagnostic capability helps ensure the ongoing reliability and performance of the backup power system.

For remote monitoring and management, the DC UPS units and their connected batteries support multiple communication protocols. Users can access system data and controls via MODBUS RTU RS485 serial connection or through MODBUS TCP/IP, SNMP and HTTPS Ethernet interfaces.

Applications

DC-UPS systems are versatile and can be used in various applications due to their innovative features. Here are some key areas where these systems provide reliable power:

• Video Surveillance: Ensures continuous operation of cameras and monitoring systems, particularly important for maintaining security in banks, retail stores, and public spaces.

• Traffic Monitoring: Provides uninterrupted power to traffic cameras and sensors. Helps manage traffic flow and enhances road safety.

• Access Control: Keeps electronic locks and entry systems operational at all times

• Intrusion Detection Systems: Powers alarms and sensors to detect unauthorised access immediately. Protects property and assets from theft or damage.

DC-UPS systems offer a wide range of voltage options, allowing them to effectively power various devices, including Ethernet switches, PoE, panel board components.

ADELSystem’s DC UPS units provide flexibility to meet exact specifications, with the installer given the option to configure the DC-UPS according to their battery, power consumption and monitoring needs.

For further information please contact ADM. Our helpful team is on hand to answer any questions that you may have.
